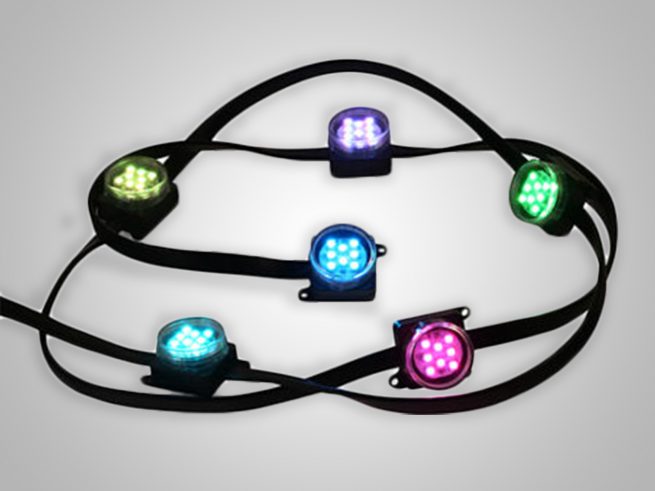

Trias DMX Dot DC30
Trias DMX Dot DC30
Trias series DMX Dot products are used for AVMs, bridges and facade lighting. The translucent, translucent and opal diffuser allows design-friendly light effects.
General Details
- DMX Dot The transparent, translucent and opal diffuser allows design to achieve appropriate light effects.
- High quality LED chip and internal circuit components ensure high illumination quality and resistance to external factors.
- Our product, which has a wide voltage range, does not have the light effect losses caused by energy conversions.
- With the DMX 512 protocol, the Trias family runs smoothly over long pixel intervals, without the need for additional signal amplifiers.
- DMX addressing is done automatically.
- Tiras Series reverse connection and current protection features keep the product at its highest level of safety.
Technical information
| Model | DC300803 | DC300304 | DC300301 |
|---|---|---|---|
| Ölçüler | 30mm | 30mm | 30mm |
| Renk | RGB | RGBW | White |
| LED | SMD 3535 | SMD 5050 | SMD 5050 |
| LED Sayısı | 8 | 3 | 3 |
| Bakış Açısı | 120 | 120 | 120 |
| Voltaj | 24VDC | 24VDC | 24VDC |
| Güç | 1.5W | 1.5W | 1.5W |
| Kontrol | DMX512 | DMX512 | DMX512 |
| Adresleme | Automatic | Automatic | Automatic |
| DMX Kanal | 3 | 4 | 1 |
| Kasa Rengi | Black / White | Black / White | Black / White |
| Difüzör | Transparent / Frosted / Opal | Transparent / Frosted / Opal | Transparent / Frosted / Opal |
| Kablo Girişi | Side | Side | Side |
| Sistem Sıcaklığı | -40°C to 50°C | -40°C to 50°C | -40°C to 50°C |
| Çalışma Sıcaklığı | -40°C to 80°C | -40°C to 80°C | -40°C to 80°C |
| Sertifika | CE / RoHS | CE / RoHS | CE / RoHS |
| IP | IP67 | IP67 | IP67 |
