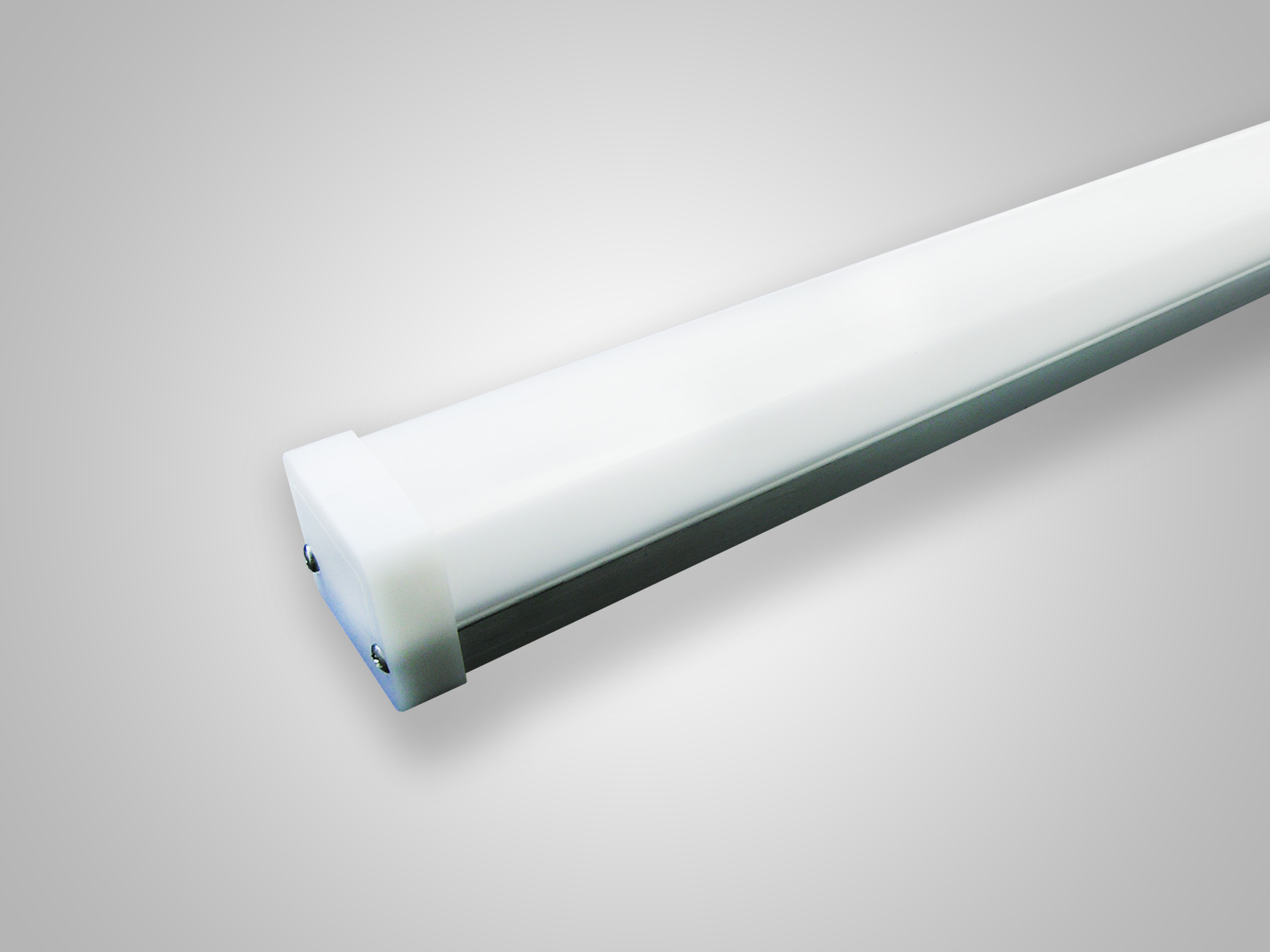

Starline DMX Linear ALB35
General Details
- High brightness with 48-60 leds on the meter.
- Manufacture in RGB and all other colors is possible.
- Operating Voltage 12-24 VDC.
- Energy consumption is 5-10 watts.
- Compatible with DMX protocol.
- With the Opali Diffuser, it can be seen from any angle with a 180 degree angle of light.
Technical information
Model | ALB3510060RGB | ALB35100MONO |
---|---|---|
Dimensions | 1000*35,7*30mm | 1000*35,7*30mm |
Color | RGB | Mono main colors |
LED | SMD 5050 | SmD 3528 / 2835 /5050 |
LED QTY | 30/60 | 48/60 |
Beam Angle | 120 | 120 |
Voltage | 12/24vDC | 12/24vDC |
Power | 8/15 W | 10 W – 15W |
Control | Optional DmX 512 | Optional DmX 512 |
Adress Setting | Manuel | Manuel |
Pixel Meter | 1 DMX pixel | 1 DMX pixel |
DMX Channel | 1 DMX pixel | 1 DMX pixel |
Housing Color | Grey | Grey |
Difuser | Opal | Opal |
Cable Entry | Side / Bottom | Side / Bottom |
Operating Temperature | -40°C to 50°C | -40°C to 50°C |
Storage Temperature | -40°C to 80°C | -40°C to 80°C |
Certificate | CE / RoHS | CE / RoHS |
IP | IP67 | IP67 |
Product Application Video
Contact Us
Please contact us for detailed information about this product and other products.
